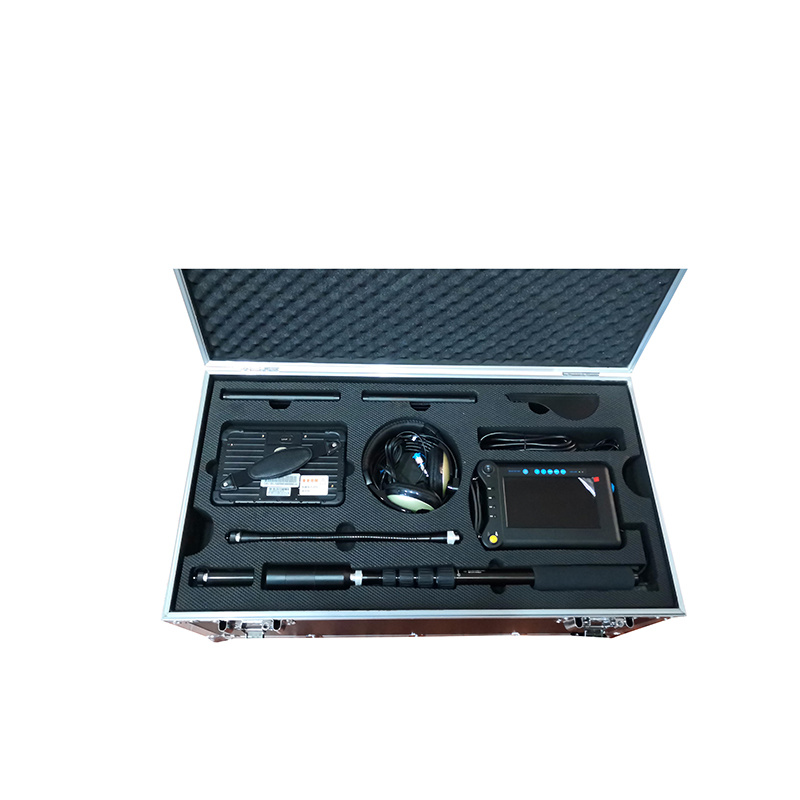

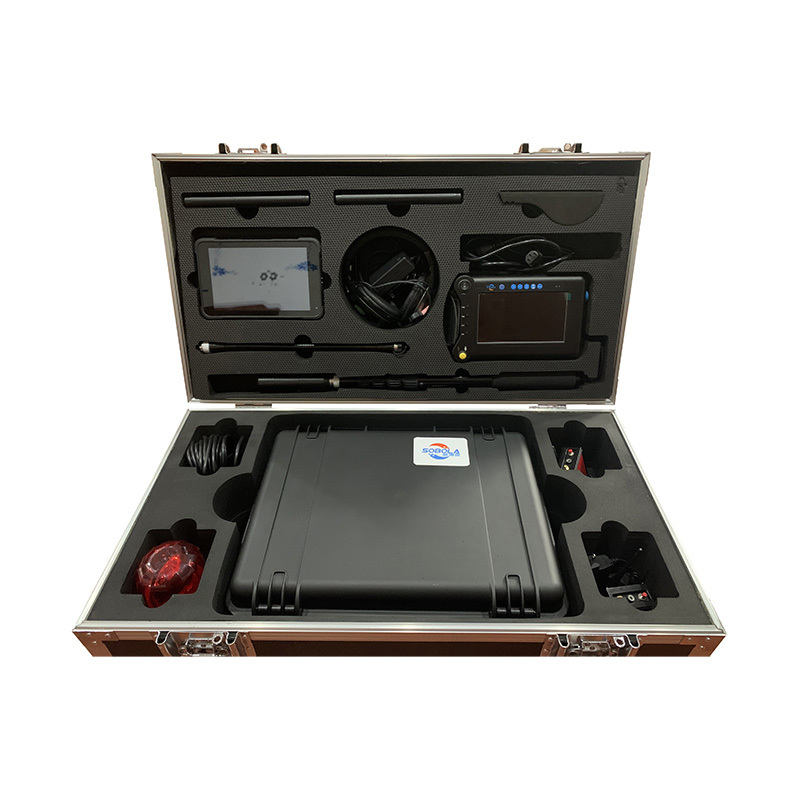

Composite Radar Life Detector (3-in-1)

Radar life detector

Brand: Sheng Bolan

Model: Search –I II

        Search–III Radar life detector base The life-detection technology based on two-dimensional bio-radar is developed by integrating ultra-wideband radar technology with micro-power consumption and biomedical engineering techniques. The system employs a multi-transmit-and-receive imaging array technology, enabling precise localization of living organisms within a specific area. This facilitates rapid detection and positioning at rescue sites, as well as swift, targeted rescue operations. The technology boasts several advantages, including wide spatiotemporal coverage, high measurement dimensionality, excellent performance stability, and superior spatial resolution for target identification. Moreover, it provides more comprehensive and accurate information about both living organisms and the surrounding environment at disaster sites, offering a solid decision-making basis for formulating efficient and feasible rescue plans, thereby reducing rescue times and minimizing disaster-related losses. It finds extensive applications in specialized fields such as firefighting, earthquake response, and emergency incident management.

The radar module features penetration capability, enabling it to search extensively for trapped individuals amid earthquake rubble. ， Perform on living organisms Regional location, precise positioning ， Quickly obtain signals from trapped individuals to help rescue personnel rapidly deploy rescue operations.

Audio and video module: capable of viewing live footage and conducting two-way voice intercom. In nighttime, low-temperature, or heavily smoky and foggy environments, it can quickly locate the positions of trapped individuals using infrared thermal imaging sensors.

After the radar module detects the precise location of a living being, the audio-video module is used for targeted rescue.

      Primarily used for post-earthquake rubble rescue, it can conduct large-scale searches for trapped individuals within collapsed buildings. ， Can be applied to living organisms Regional location, precise positioning ， Quickly obtain signals from trapped individuals to help rescue personnel rapidly deploy rescue operations.

1. Wall penetration detection distance: Able to detect ≥ 50m Behind a thick solid concrete wall, detect stationary living organisms ≥ 20m ; Detection of moving living organisms ≥ 30m；

2. Detection display: Moving targets and breathing targets are displayed using differently colored graphics. Moving targets are accompanied by motion trajectories that are shown in real time. A green icon with a motion trajectory indicates a moving target, while a red humanoid icon represents a stationary target.

3. Detection accuracy: Average longitudinal detection error ≥ 8cm , horizontal average error ≥ 20cm；

4. Radar detection accuracy ≥ 95%

5. Thermal imaging / The video dual-function probe features a built-in video sensor and a thermal imaging sensor. With a single press of the host’s button, you can instantly switch between thermal imaging and visible-light image displays.

6. Thermal imaging / The video dual-function probe features high brightness. LED Lighting lamp, for use in dark environments, with an illumination range of 6 Meter; built-in microphone and speaker support two-way voice intercom;
