Multi-functional (Composite) Radar Life Detector (4-in-1)

Multi-functional (Composite) Radar Life Detector

Model: Search-III

Brand: Sheng Bolan

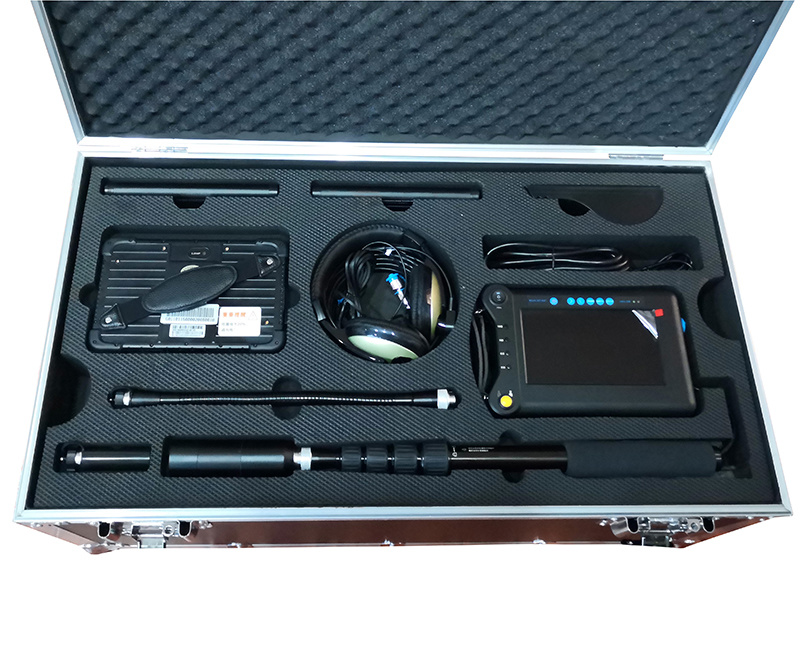

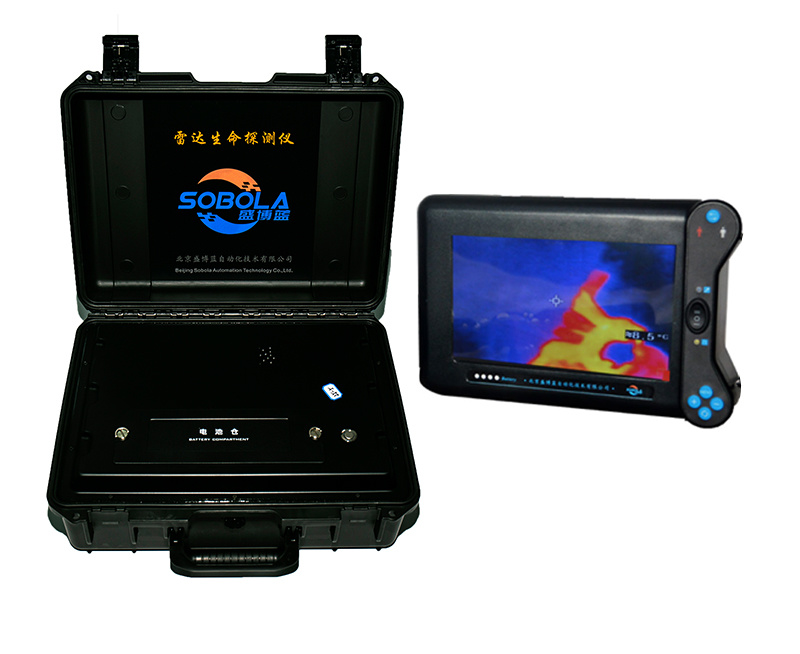

     Search–III Composite The radar life detector is a high-tech, specialized rescue device designed specifically for disaster relief scenarios such as earthquakes, avalanches, and building collapses. The entire system integrates audio-video, infrared thermal imaging, aftershock detection, and radar modules into a single enclosure. Audio-video, thermal imaging, and radar images can be displayed on the same monitor, or they can be separated and operated independently according to environmental conditions. This allows the device to serve multiple purposes with just one unit.

             The entire system integrates audio-video, infrared thermal imaging, aftershock detection, radar, and other modules into a single enclosure. Audio-video, thermal imaging, and radar images can be displayed on the same monitor, or alternatively, they can be separated and operated independently according to environmental conditions. This allows the device to serve multiple purposes with just one unit.

            Primarily used for post-earthquake rubble rescue, it can conduct large-scale searches for trapped individuals within collapsed buildings. ， Can be applied to living organisms Regional location, precise positioning ， Quickly obtain signals from trapped individuals to help rescue personnel rapidly deploy rescue operations.

1. Scanning and Display Function: The detector is equipped with layered scanning and search capabilities for specific areas, features two-dimensional positioning, and can acquire the two-dimensional coordinates of living organisms, displaying them on the control and display terminal.

2. Wall-penetration detection range: For solid walls (such as rubble or brick walls), the penetration depth is ≥50 cm; the detection range for stationary living beings is ≥20 m; the detection range for moving living beings is ≥30 m.

3. Detection angle: 120°; detection horizontal area ≥ 8,400 m²; conical area ≥ 84,000 m³;

4. The battery features a prominent power-level indicator, and the display shows the remaining battery charge. In a fully charged state, the device can operate continuously for ≥12 hours.

5. Audio-Video and Thermal Imaging Module: This module integrates a thermal imaging sensor and an audio-video sensor into a single probe. The user can switch between thermal imaging and visible-light images with a single button on the host unit. It is ideal for search and rescue operations in environments such as smoky or dark conditions, where it can detect the vital signs of trapped individuals. Featuring a one-button switching function, users can instantly toggle between thermal imaging and audio-video views at any time, and the image display can be flipped as needed.

6. Aftershock Monitoring Module: Measurement Range: Three-dimensional (360 degrees); capable of displaying the X, Y, and Z axes through three-dimensional monitoring.
