3D Imaging Wall-Penetrating Life Detector

3D Imaging Wall-Penetrating Life Detector

Brand: Sheng Bolan

Model: Search–IV

Qualification: Software Copyright

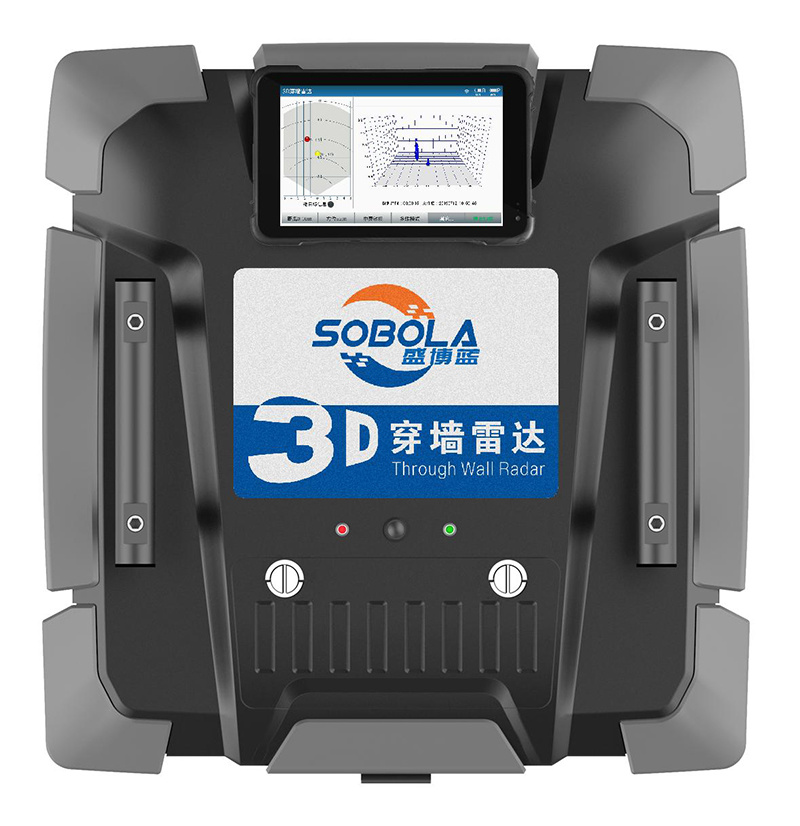

Search-IV 3D Imaging Through-Wall Radar is an ultra-wideband radar that employs advanced radar technology, boasting exceptional penetration capability and intelligent decision-making ability. It features cutting-edge detection methods, high responsiveness, and high accuracy, and is easy to use. It can quickly detect human activity behind non-metallic walls or obstacles, enabling real-time localization of personnel positions. At the same time, it can identify richer environmental perception information, such as the height and posture (standing or crouching) of human targets, thus offering a wider range of application scenarios.

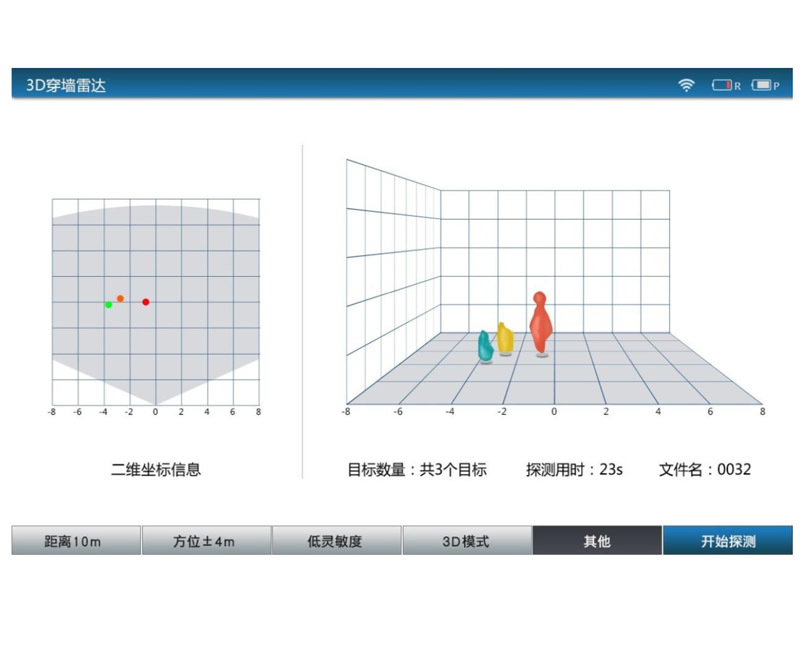

It can detect the two-dimensional coordinates of human targets and generate images of human targets whether they are standing or squatting, and it can simultaneously display multiple targets.

Widely used in emergency rescue scenarios such as public security counter-terrorism, hostage rescue, and urban guerrilla warfare, where rapid target search is required.

1. Penetrable media: Common walls, wood, and other non-metallic, low-moisture materials;

2. Detection mode: Real-time 2D positioning and 3D imaging, simultaneous detection of both moving and stationary targets;

3. Detection range in wall-penetrating mode: ≥10 m for stationary living beings, ≥15 m for moving living beings;

4. Number of objectives: 3;

5. Detection angle: Azimuth angle 120°, pitch angle 90°
