Search –III Two-dimensional Radar Life Detector

Brand: Shengbo Blue

Product Qualifications: Test Report, Software Copyright

Product Introduction:

The Search – III radar life detector is based on two-dimensional bio-radar life detection technology. It is developed using integrated low-power ultra-wideband radar technology and biomedical engineering technology. The system uses a multi-transmit and multi-receive imaging array technology to accurately locate the position of living bodies in a region, enabling rapid detection and positioning at rescue sites for quick targeted rescue. It has advantages such as a wide spatiotemporal coverage area, high measurement dimensionality, good performance stability, and target spatial resolution. It can obtain more comprehensive and accurate information about living bodies and disaster relief site environments, providing decision-making support for developing efficient and feasible rescue plans, shortening rescue time, reducing disaster losses, and is widely used in special industries such as fire fighting, earthquakes, and emergency response.

1. Non-contact detection: Detection of the breathing and movement of living bodies. The detector can detect characteristic signals such as breathing or heartbeat of living bodies without excavating ruins, drilling holes, or making contact with the living bodies.

2. Detection Playback: Re-display the historical scanning process.

3. File Management: Delete terminal target files: download, delete, or view host target files.

4. The control terminal has the function of controlling the radar host, including: host initialization, start detection, parameter setting, mode selection, equipment self-check, stop, and shutdown.

5. Scanning and Display Function: The detector has the function of layered scanning search of the area, has a two-dimensional positioning function, can obtain the two-dimensional coordinates of the living body and display them on the control terminal.

6. Detection Time Selection Function: The control terminal has a detection time selection function, and can select manual stop, 60-second detection, 90-second detection, or 120-second detection.

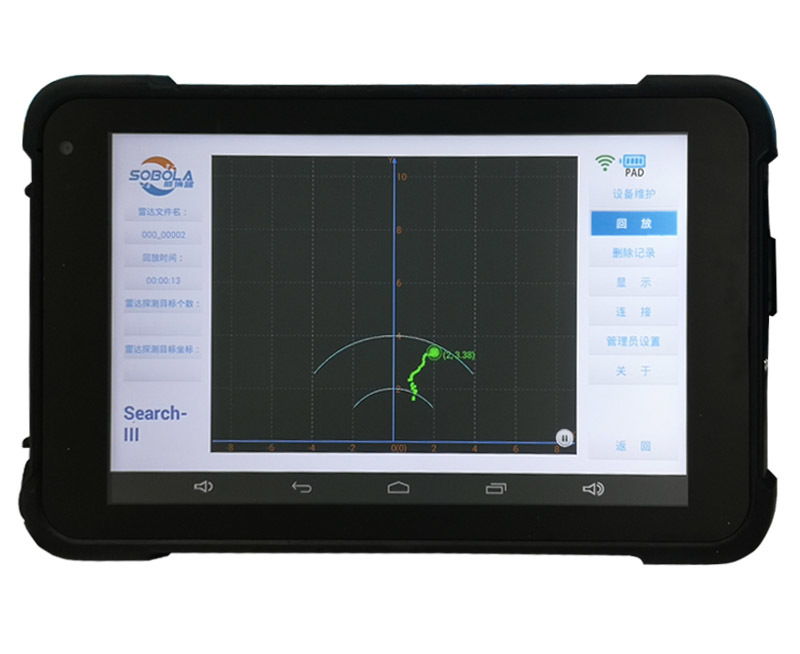

7. Intelligent Discrimination Function: Through intelligent algorithms, it automatically judges the existence of living bodies and distinguishes between moving and stationary targets, with trajectory display/hide selection function. The detected human movement and stationary targets (breathing results) are displayed on the screen in different color graphics. Green with a moving trajectory icon represents a moving target, and a red human icon represents a stationary target.

8. Data Transmission Function: It has a wireless data transmission function.

9. Battery Power Display Function: The handheld PAD can display the battery power of the device and the radar host. When the battery power is low, an alarm and prompt should be displayed on the control terminal screen.

Product Qualifications:

Project Cases:
