Search –II 2D Radar Life Detector

Product Introduction:

The Search -II radar life detector is a high-tech professional rescue device designed for disaster relief scenes such as earthquakes, avalanches, and building collapses. It mainly analyzes and judges the existence of life and the specific location information of life in the ruins based on the time-domain Doppler echo generated by human movement on the radar signal. At the same time, it uses the strong penetration of ultra-wideband pulse radar into the ruins, combined with professional radar signal processing algorithms, to finally realize the function of quickly detecting and rescuing survivors in the ruins, helping rescuers improve the rescue rate.

1. Non-contact detection: Detection of life's breathing and movement. The detector can detect the characteristic signals of life's breathing or heartbeat without excavating the ruins, drilling holes, or contacting the life.

2. Detection Playback: Re-display the historical scanning process.

3. File Management: Delete terminal target files and waveform files: download, delete, or view host target files, waveform files, or log files.

4. The control terminal has the function of controlling the radar host, including: host initialization, start detection, stop and shutdown.

5. Scanning and Display Function: The detector has the function of layered scanning and searching the area, and accurately displays the data on the receiver.

6. Intelligent Discrimination Function: The detected human movement and stationary targets (breathing results) are displayed on the screen in different color graphics. Green with motion trajectory icon represents moving targets, and red human icon represents stationary targets.

7. Automatic Judgment Function: Through intelligent algorithms, automatically judge whether there is life, and distinguish between moving targets and stationary targets.

8. Data Transmission Function: It has wireless data transmission function.

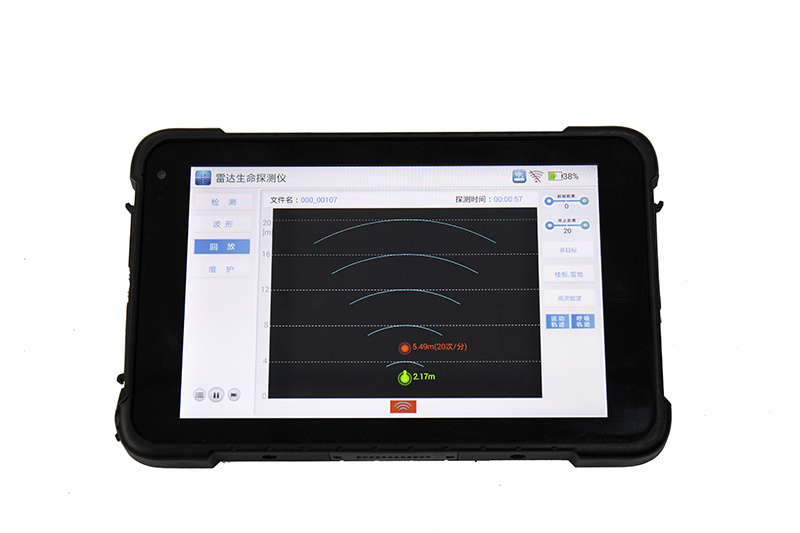

9. Detection Display: Moving targets and breathing targets are displayed in different color graphics, moving targets have motion trajectories, and are displayed in real-time tracking; green with motion trajectory icon represents moving targets, and red human icon represents stationary targets.

Product Qualifications: Test reports, software copyrights, new technology and new product certificates

Application Cases:
