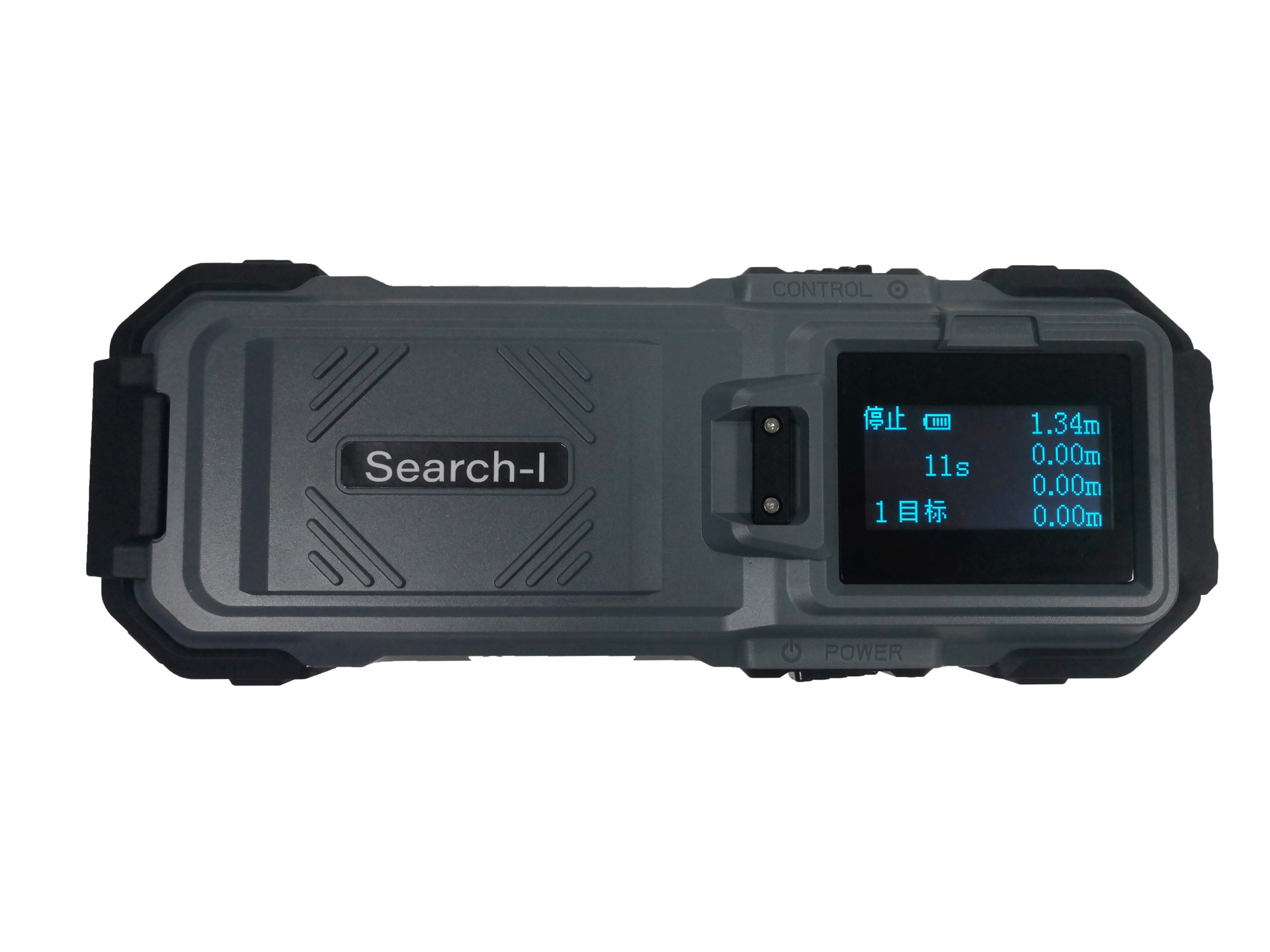

Search –I Portable Radar Life Detector

Brand: Shengbolan

The Search-I radar life detector is a portable radar detector that mainly analyzes and determines the presence and specific location information of living organisms in the ruins based on the time-domain Doppler echo generated by human motion on the radar signal. At the same time, it uses the strong penetration of ultra wideband pulse radar into the ruins, combined with professional radar signal processing algorithms, to ultimately achieve the function of rapid detection and search for survivors in the ruins, helping rescue personnel improve the rescue rate. Integrated operation, small size, light weight, no need for probes and cables, easy layout and precise positioning, meeting harsh environmental requirements.

1. Product Features:

1.1 Non contact detection: Respiratory detection and movement detection of living organisms. The detector can detect characteristic signals such as respiration or heartbeat of living organisms without the need to excavate ruins, drill holes, or come into contact with them.

1.2 Scanning and Display Function: The detector has the function of scanning and searching the area, and accurately displays the detection distance on the host.

2. Main performance indicators of the product

2.1 Complies with the requirements of GJB150A-2009 standard.

2.2 Integrated design of radar host, embedded LCD display, no need for external display screen, using ultra wide pulse radar.

2.3 Penetrating wall thickness: 40cm;

2.4 Detection distance: 30m;

2.5 Permeable media: building walls, cement, gypsum, concrete, floor slabs, wood and other objects;

2.6 Detection angle: 120 ° (± 60 °);

2.7 Detection accuracy: ± 10cm;

2.8 Detection mode: Real time ranging, with real-time detection and display functions for moving and stationary targets;

2.9 Detection targets: Multi target detection: 3;

2.10 System continuous working time of 6.0 hours;

2.11 Radar detection accuracy of 98.2%;

2.12 Start time: The device starts in 2 seconds;

2.13 Target detection response time: 2s;

2.14 Radar Detection System: Operated entirely in Chinese, simple and convenient.

The 2.15 radar is designed with an integrated three proof system: waterproof, dustproof, earthquake resistant, and anti smashing, with a protection level of IP67. It can be used normally when dropped from a height of 0.5 meters.

2.16 Working temperature: -40 ℃ -+60 ℃;

2.17 Host size: 260 mm × 100 mm × 60mm (± 5mm);

2.18 Host weight: 850g (± 5g) (including battery)
