BF-SN18 Underwater Sonar Life Detection Instrument

Brand: Beijing Shengbo Lan

Model: SN-18

Certification: Test Report

I. Product Introduction

BF-SN18 Underwater Sonar Life Detection Instrument,  Combines sonar and video detection. After large-area scanning and positioning by sonar, it provides a riverbed scanning view with extremely clear imaging, providing reference for rescuers. For user reference. Combined with video detection principles to rescue drowning victims or detect underwater terrain structures, truly achieving multiple uses in one device. ；

II. Technical Parameters:

1. Host

1.1 The complete set of equipment includes: sonar host, sonar transducer, underwater video transducer, underwater video cable, power supply, towing device and other accessories.

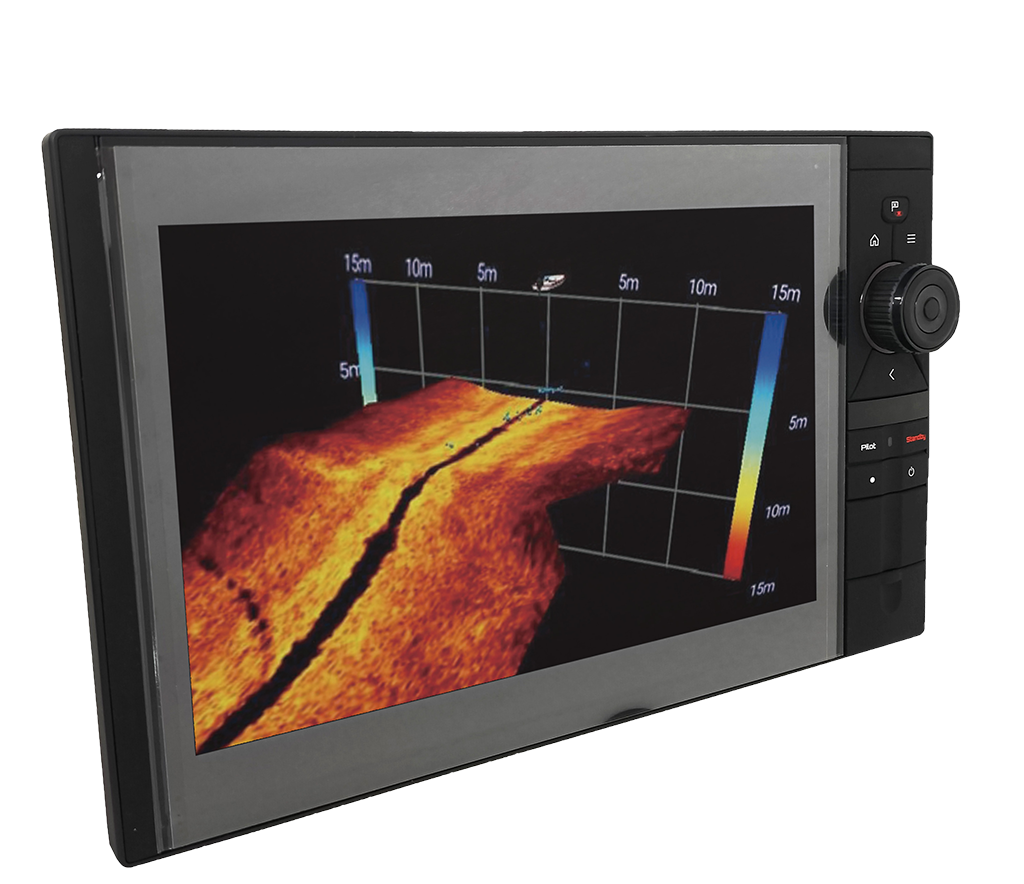

1.2 The host uses a 12-inch color high-definition display screen and supports multi-touch.

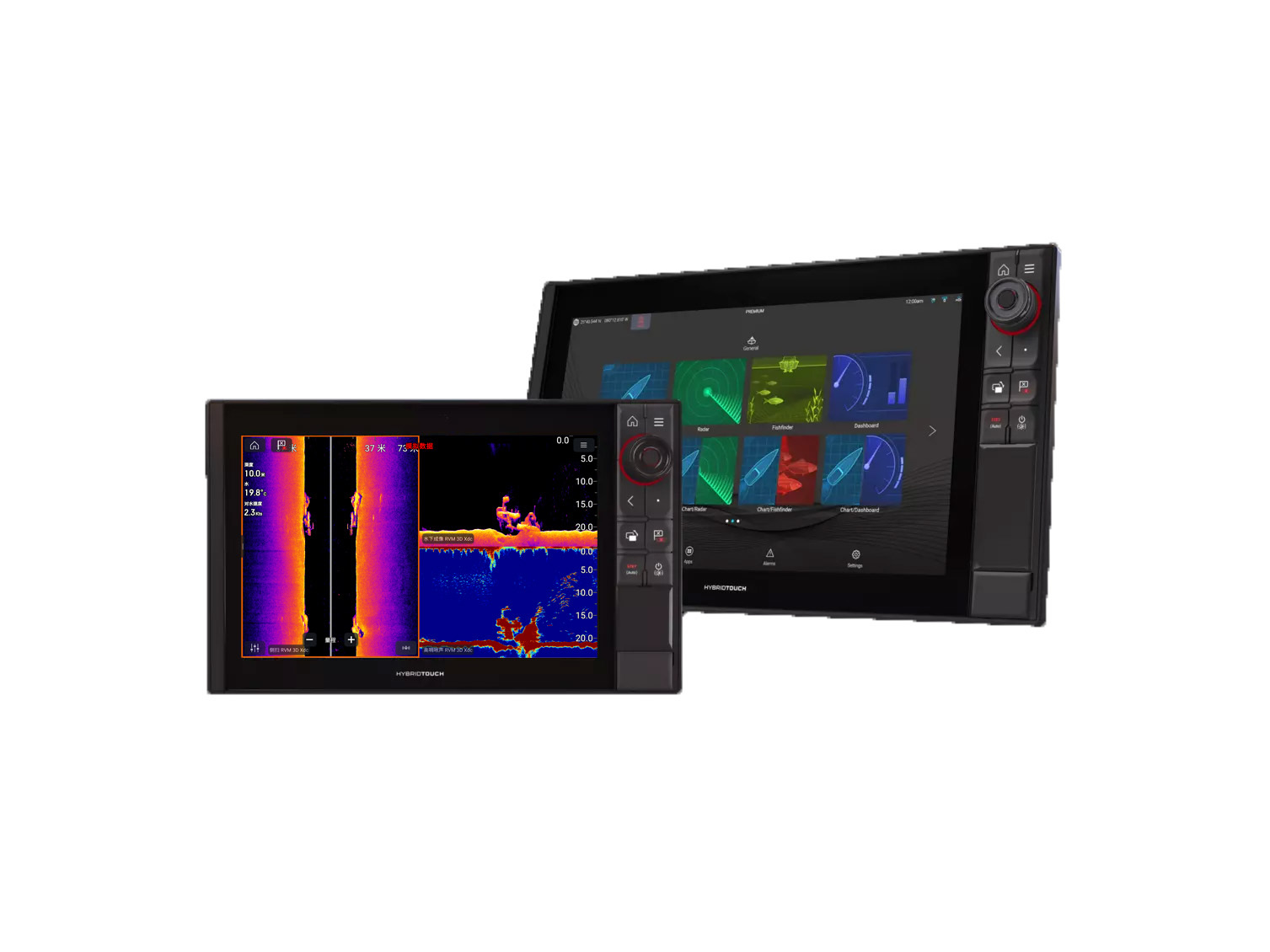

1.4 The host interface supports split-screen display, freely combining display modules, It can display sonar and video images on a split screen, or it can enter a single interface for independent display.

1.5 The host supports sonar search and video search principles. The sonar host has multiple interfaces and can connect to sonar and video transducers for simultaneous operation.

1.8 The host has a positioning function: supports GPS, Galileo, Glonass, and Beidou precise positioning.

1.11 The host supports sonar and video positioning in one. Using sonar search and precise GPS positioning, capturing clear images with the underwater camera, and generating underwater images in real time.

1.12 The sonar system has a sonar scanner, and the video imaging system has a high-definition underwater camera and transmission  extension cable, and a stainless steel towing device.

1.14 Overall protection level: IP67.

1.15 Operating temperature: -40℃-70℃

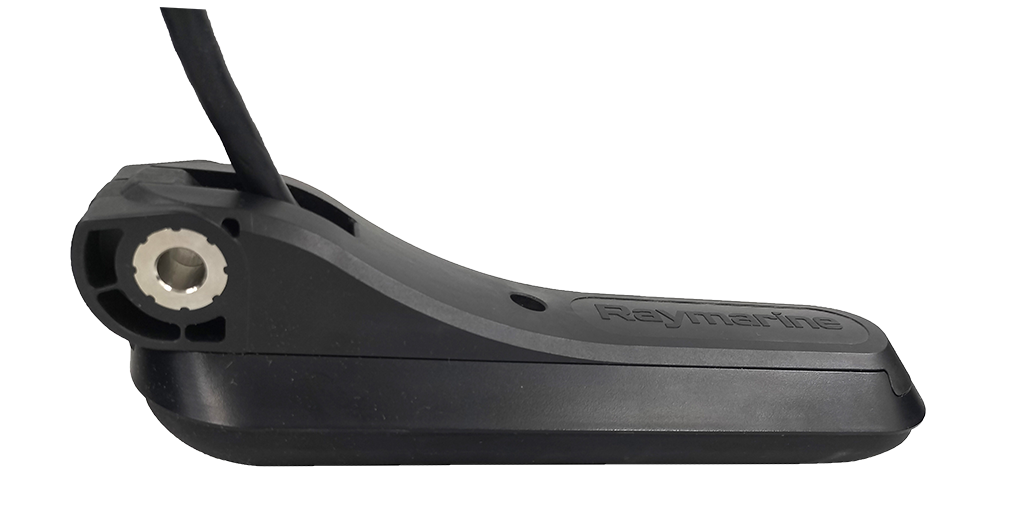

1. Sonar Transducer

Four-in-one sonar transducer, four functions in one.

No need to change the transducer, easy installation, and convenient use.

2. Underwater Video Transducer

Transducer Clarity 1080P, 360-degree free rotation can be controlled by buttons, rotation speed can be set, and specified areas can be detected simultaneously, and the rotation angle can be displayed on the screen.

The transducer has a built-in high-brightness LED light, using a color image sensor, LED light switch is adjustable, in dark environments or turbid water, it can still be used for detection.

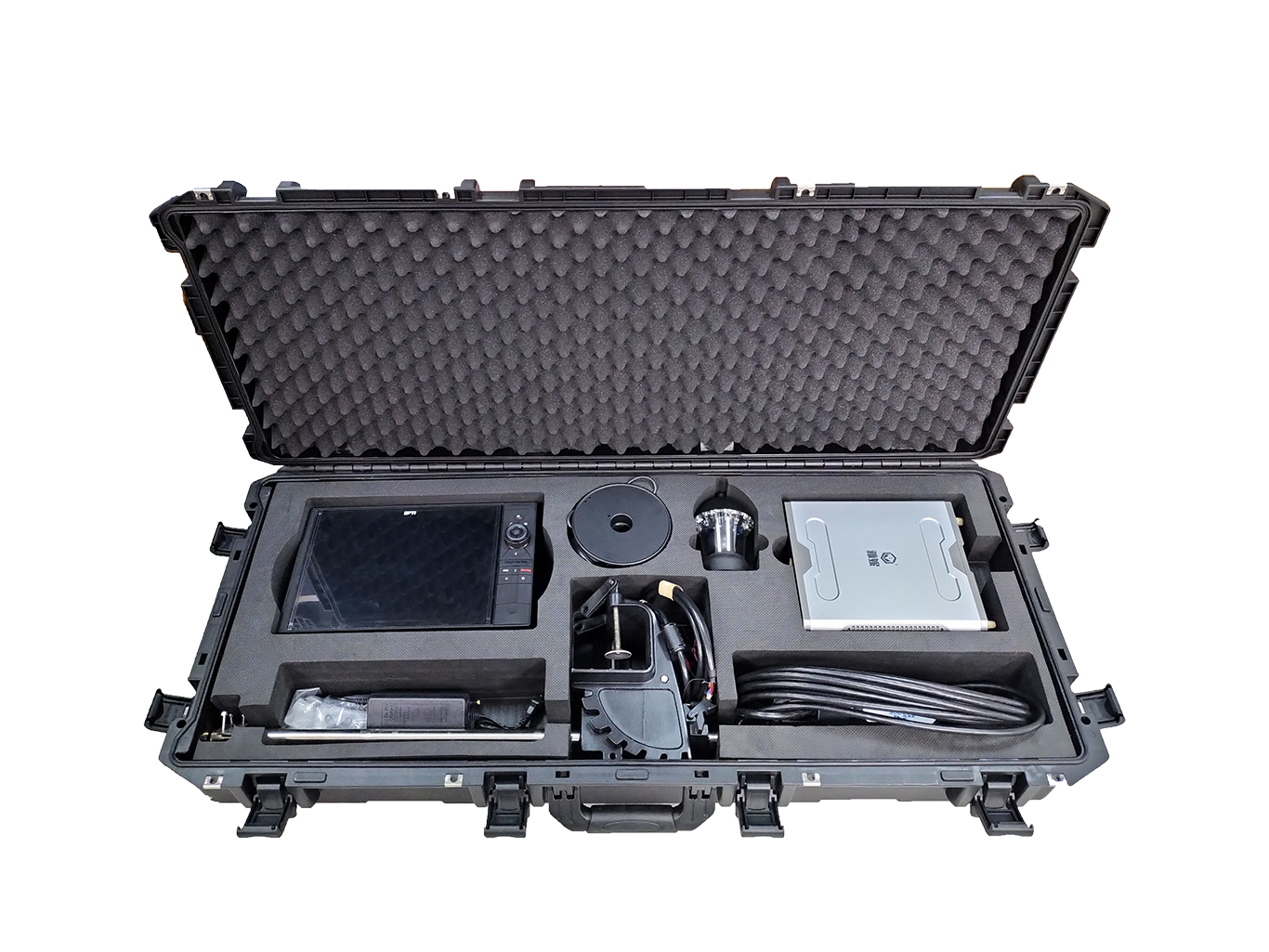

IV. Configuration List

1. Host                    1
2. Sonar Transducer                1
3. Underwater Video Transducer            1
4. Underwater Video Cable            20 meters
5. Handheld Telescopic Pole              1
6. Towing Device                1 set
7. Battery                    1
8. Connecting Cable                  1 set
