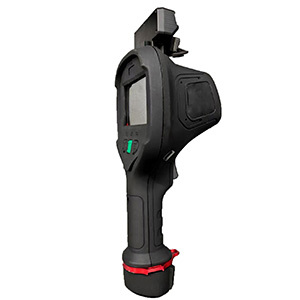

Thermal Imager

Brand: Shengbolan

Model: HRYXBSZ-384-SBL

1. Product Features

1.1 Compliant with XF/T 635-2023 Standard for Firefighting Infrared Thermal Imagers.

1.2 High-performance detector: High detector pixel, wide temperature measurement range, able to quickly and accurately capture and display the target temperature, suitable for various complex environments.

1.3 Multifunctional display: Supports multiple display modes, including white hot, black hot, fire fighting, fire, search and rescue, picture-in-picture, visible light, and fusion 8 image color modes to meet the needs of different scenarios.

2. Technical Parameters

2.1 Compliant with XF/T 635-2023 Standard for Firefighting Infrared Thermal Imagers.

2.2 Detector Pixels: 384×288

2.3 Temperature Measurement Range: -40℃～2000℃, supports automatic shifting, automatically switches the range according to the measured temperature.

2.4 Temperature Range: Temperature detection range can be set -40℃-150℃; 0℃-650℃; 500℃-2000℃ three levels.

2.5 Noise Equivalent Temperature Difference ( NETD): 50mk

2.6 Display: 4.3-inch color LCD screen, screen brightness supports level switching.

2.7 Automatic image adjustment, with Chinese screen display, supports English switching 。

2.8 Infrared thermal imager sampling frame rate 60 frames/s.

2.9 Spatial Resolution: 2.5mrad

2.10 Image Mode: White hot, black hot, fire fighting, fire, search and rescue, picture-in-picture, visible light and fusion modes.

2.11 Image Magnification: 2x/4x/8x digital zoom

2.12 Supports alarm and alarm threshold adjustment functions.

2.13 Working Response Band: 8～14μm

2.14 With photo and video recording functions, built-in storage 128GB, supports real-time viewing of captured and saved images and videos on the device, supports deleting videos and images on the device.

2.15 With temperature measurement value, battery power consumption, temperature scale, photo or video recording status display function.

2.16 Focusing function: Supports automatic and manual focusing and simultaneously displays the temperature value of the focus area.

2.17 Supports WiFi transmission and laser ranging functions, can measure and display the straight-line distance between the measured object and the host.

2.18 Laser ranging range: 600m

2.19 With infrared mode and visible light mode, The two modes can be switched quickly, and the visible light resolution is 5 million pixels.

2.20 With emissivity 'target distance, humidity, and atmospheric temperature setting functions.

2.21 Operating Temperature: -30℃～+60℃ range.

2.22 Temperature Measurement Accuracy: ±2℃ or ±2%, take the maximum value

2.23 With laser pointing function, electronic compass pointing function, hot and cold spot tracking function, full-screen highest and lowest temperature automatic tracking function, can simultaneously display the highest, lowest and center point temperatures.

2.24 In 260℃ ambient temperature continuous working time 5min; at 120℃ ambient temperature continuous working time 10min; at 80℃ ambient temperature continuous working time 30min

2.25 Supports center point, highest temperature, lowest temperature indication and fixed temperature measurement area detection.

2.26 Protection Level: IP67;

2.27 The top of the host is equipped with a metal hook and a retractable buckle, which can hang the thermal imager on the chest. The vertical load capacity of the retractable buckle 20kg, retraction force 1.5kg, retractable length 50cm.

2.28 Drop resistance: With shock-absorbing protection device, three directions ( x, y, z) can be freely dropped from a height of 2m to the concrete floor once, and can be used normally after power on.

2.29 The host supports TYPE-C, Micro HDMI, 1/4 inch tripod interface, supports on-site charging and direct battery charging.

2.30 Host working time: Powered by removable lithium battery, a single battery can work continuously 5h.

2.31 Weight: Including battery 1.3kg, the host size is 285mm*155mm*125mm.
