Displacement (Aftershock) Monitoring Instrument

Brand: Shengbolan

Model: BF-JG/YZ5.0

I. Product Applications:

In response to the frequent natural disasters at home and abroad in recent years, and the fact that rescue teams are threatened by the secondary collapse of buildings during rescue operations, endangering the safety of personnel; our company has invested a large amount of research and testing, independently developing a warning system that detects potential loosening and collapse of walls, dangerous buildings, subsidence of building beams, lateral movement of metal tanks, or collapse of glass walls caused by earthquake aftershocks or explosions, etc., issuing an alarm the moment an object moves, reminding rescue personnel to evacuate to a safe area as soon as possible, effectively protecting the personal safety of rescue personnel.

II. Product Features:

Used to detect potential loosening and collapse of walls, subsidence of building beams, lateral movement of metal tanks or wall body collapse, etc., for early warning alarm systems;

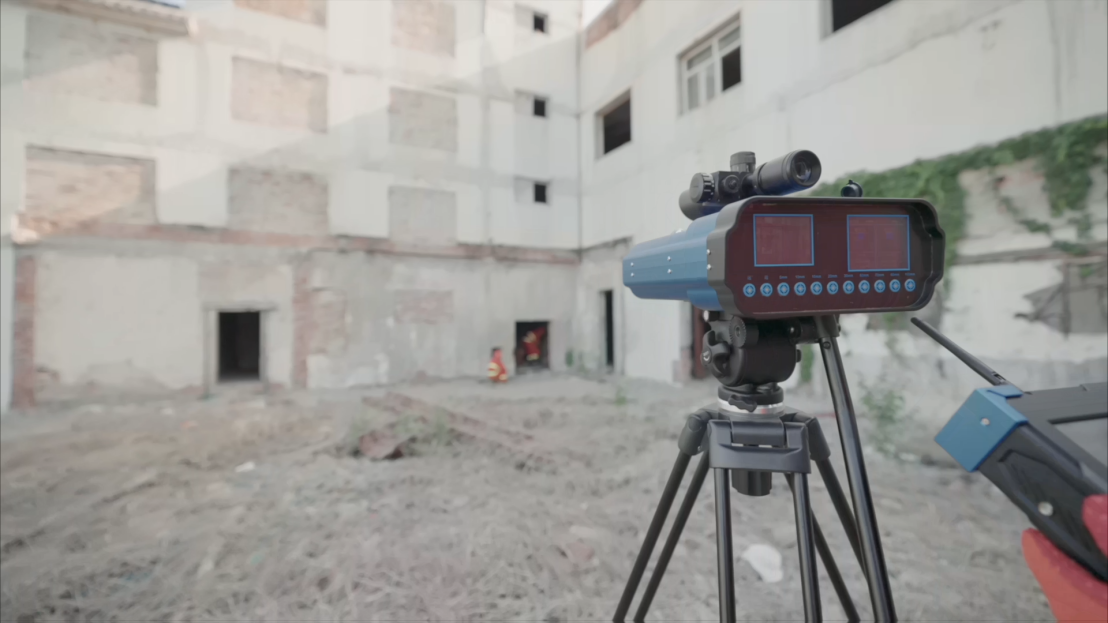

Using harmless lasers, it can monitor any slight movement of dangerous buildings and other building structures (such as floors, floor tiles, columns, walls) caused by earthquakes, bombs, gas explosions, etc.

Combining laser remote monitoring and tilt vibration monitoring, and real-time monitoring of displacement and angle changes.

Supports remote control function, alarm value can be set wirelessly from a distance;

Supports reverse one-key search function, allowing the laser displacement host and aftershock host to alarm simultaneously

III. Technical Parameters:

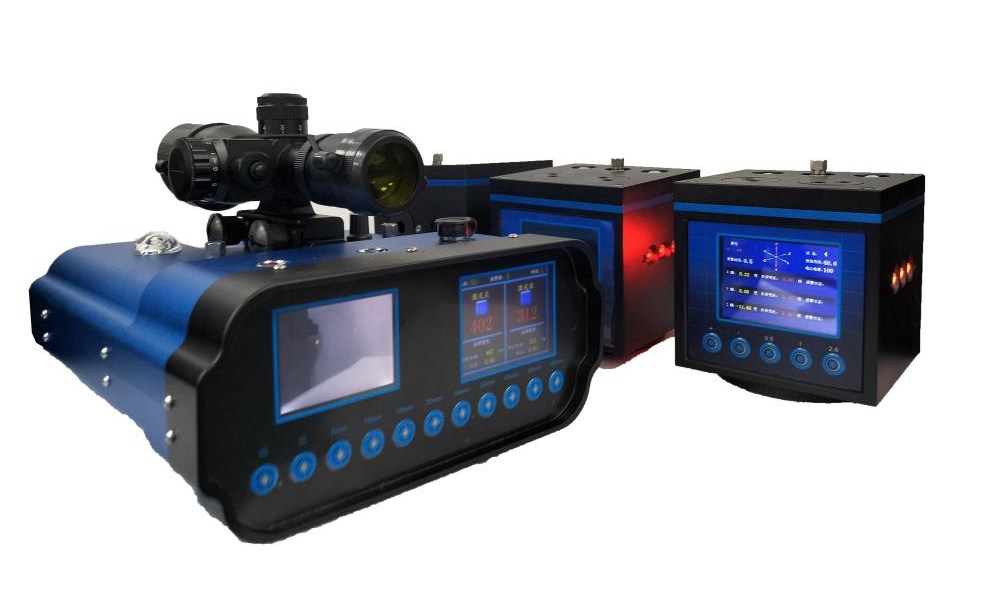

1. The whole machine consists of laser transmitter, tilt monitor, audio-visual alarm 、 wireless monitoring background etc.
2. Laser transmitter monitoring distance ≥100 m 。
3. Laser transmitter power: 8W.
4. Minimum laser displacement monitoring value: 1mm。
5. Maximum laser displacement monitoring instrument value: 200mm.
6. When the laser host displacement exceeds the set value, an audio-visual alarm indication is given, alarm sound of the alarm maximum up to 110 d B 。
7. Laser host Screen size: 2 inches ； Screen pixels: 5 million.
8. The host is equipped with a telescope to assist in observing the monitored target.

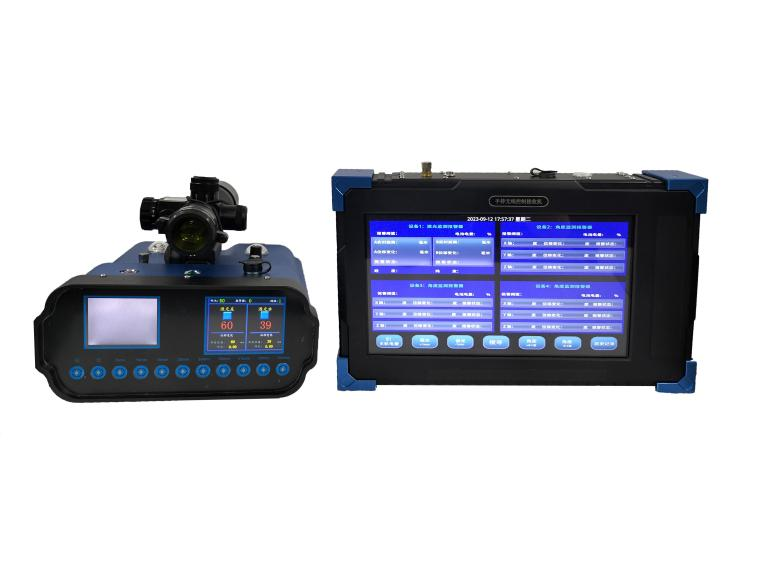

9. wireless monitoring background The display screen uses 10 inch color touch screen, can display the size of the alarm value, with battery percentage display ; alarm value ≤1° 。 Wireless transmission distance ≥ 200m， Can receive laser irradiation distance, laser alarm status.
10. Wireless monitoring background: can one-key search 4 aftershock monitoring instrument, 1 laser displacement host.
11. Wireless monitoring background: can set and monitor displacement values without touching the host, display the current monitoring value, can display 1 laser signals, 4 aftershock signals.
12. Aftershock measurement range: three-dimensional stereo ( 360 degrees), can be displayed through three-dimensional stereo monitoring of X, Y, Z three axes.
13. Audio-visual alarm: The audio-visual alarm can receive alarms from the aftershock monitoring instrument, and distinguish the source of the alarm signal through voice broadcast function, and laser transmitter is for long-distance wireless transmission, transmission distance 200m.
14. Overall protection level IP55.

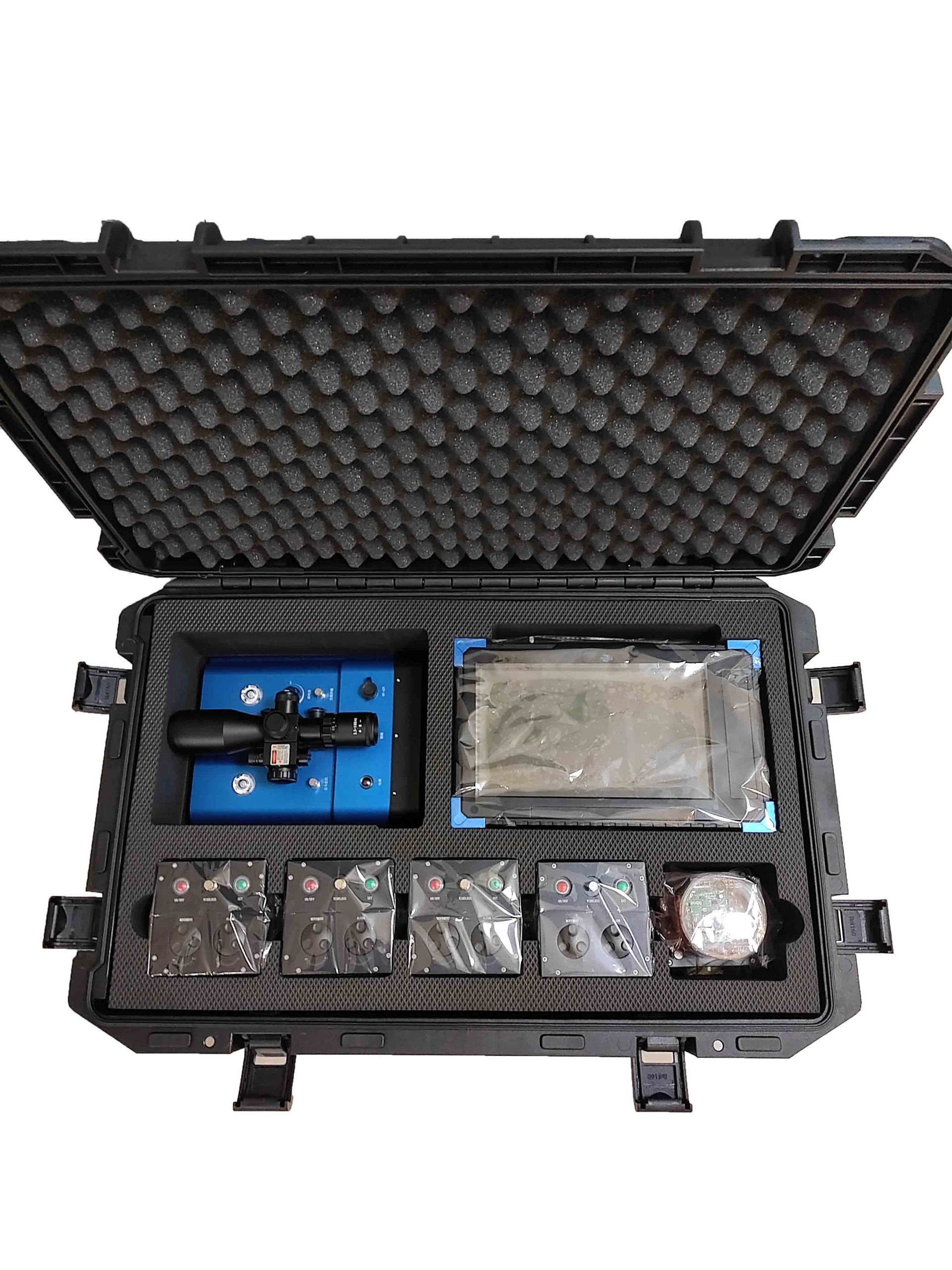

IV . Configuration List ：

1. laser transmitter          1
2. Tilt monitor         4 unit
3. Audio-visual alarm          1
4. Tripod              1
5. wireless monitoring background        1
6. Antenna                1 set
7. Manual, qualification certificate, warranty card, packing list one set
