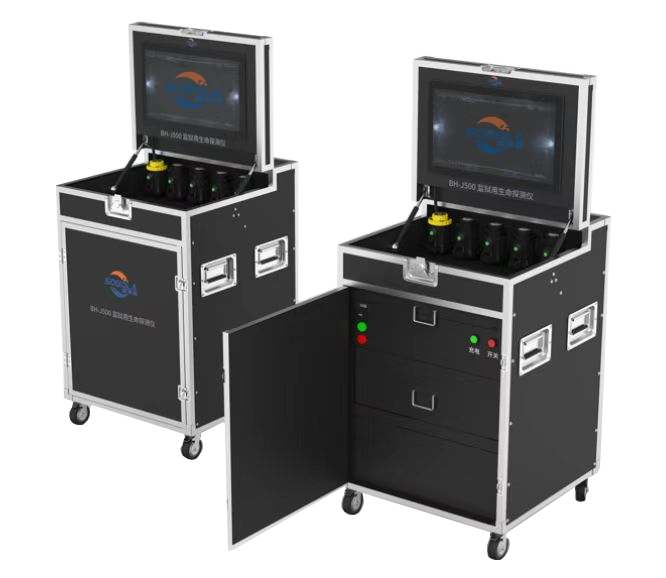

BH-J500 Prison Micro-vibration Vehicle Life Detection System

Brand: Beijing Shengbolan

Brief   Introduction

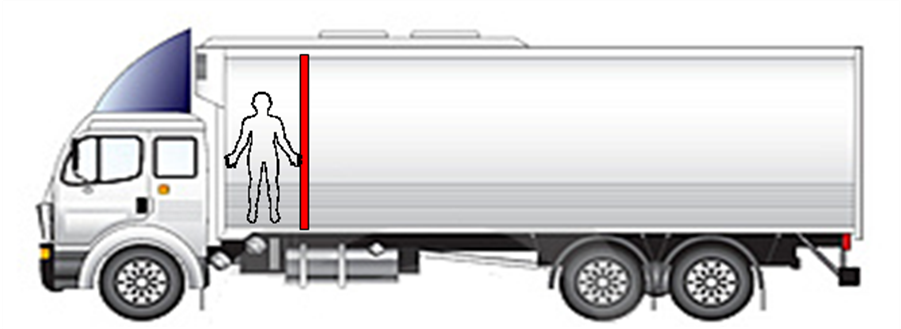

Micro-vibration Vehicle Life Detection Instrument This is a safety detection system used to detect illegal personnel hiding in vehicle containers. Using this system is safer, more reliable, and more time-saving than manual search. This system collects horizontal or vertical vehicle vibration and vertical ground vibration information data through wireless micro-vibration sensors. The processor uses built-in algorithms to calculate the collected signals. The backend data analysis system transmits the heartbeat of the person detected inside the vehicle to the carriage, producing tiny, regular vibrations or tremors, and analyzes and processes the tiny environmental vibrations. Detection personnel can determine whether someone is hiding inside. , The software detection algorithm focuses on the special vibration range produced by the heart. By analyzing these vibrations, it can be determined within seconds whether someone is hiding inside.

This system implements automatic inspection of 10 meters and below various types of vehicles, ensuring that personnel hidden inside the vehicles can be found. Based on this vibration analysis technology, the core processing host uses the core algorithm to determine whether there are people inside the vehicle, maximizing the effect of vehicle escape detection. The wireless lightweight micro-vibration vehicle life detection system has high adaptability and can be used for non-opening box detection of most vehicles.

I. Product Features:

1. Can be implemented for various types of vehicles Non-opening door detection ；
2. Fast inspection speed, inspection time 4-30 seconds ;
3. Safe and reliable detection results, no harm to personnel;
4. Sensors use Wireless transmission method ，Simple, portable, and easy to operate;
5. Ergonomic principle configured special industrial touch screen;
6. Clear and concise human-computer interaction interface, simple and user-friendly equipment operation;

7. Inspection results are automatically stored and can be viewed at any time;

II. Applicable Locations:

Suitable for Prisons, customs, drug rehabilitation centers, detention centers, detention centers, anti-terrorism, entry and exit, highway entrances and exits, etc.

III. Product Functions:

1. Control functions:

The display control terminal has the function of controlling the detection host, including initialization, start detection, stop, and shutdown of the detection host.

2. Automatic judgment function:

Automatically judge whether there is a living body in the detection area by automatically processing the sensor detection data.

3. Data storage function:

Supports vehicle access management functions, and can perform registration, test records, result output, backup, and login personnel management for entering and exiting vehicles;

4. The system has a power-on self-test function:

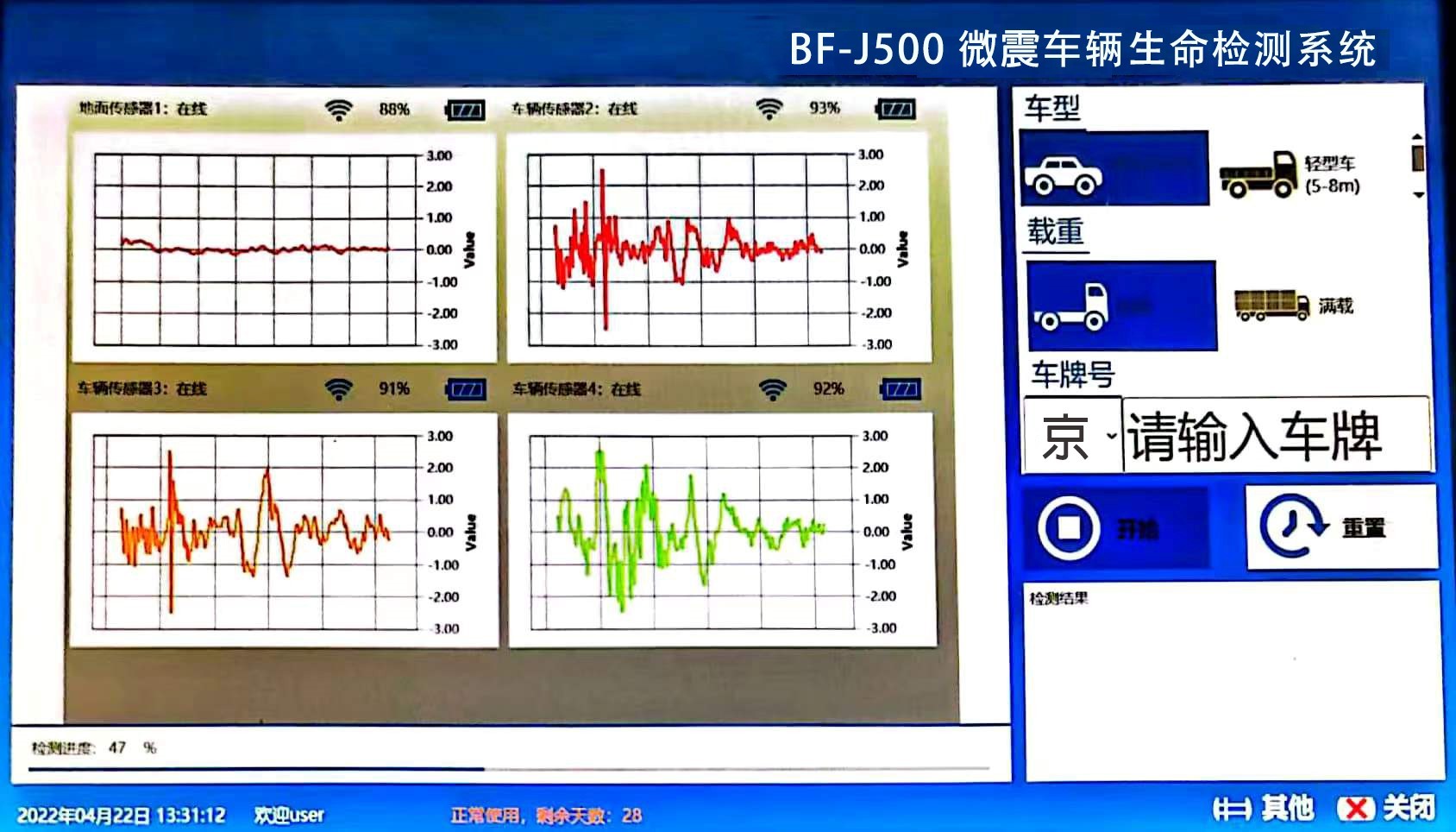

When the sensor is not connected or the connection is incorrect, the system automatically prompts that the sensor connection is incorrect. When the data acquisition device is incorrectly connected to the industrial control computer, the system also has an automatic prompt function; when the system is working normally, the software interface of the system displays the waveform signal of the sensor.

Vehicle personnel detection alarm function

The system has a vehicle personnel detection alarm function. When there are people on the detected vehicle, the system can detect it and play the voice " Detection failed ” and issue a red alert prompt on the software interface. When there is no one on the detected vehicle, the system completes the detection and plays the voice " Detection passed ” and issues a green prompt on the software interface.

6. Chinese operation interface

Simple and easy-to-use Chinese interface operation, friendly prompt information, the application system is simple and convenient to operate, only computer key operation, in 30 seconds, single vehicle detection can be achieved, greatly improving work efficiency, making the system very user-friendly.
