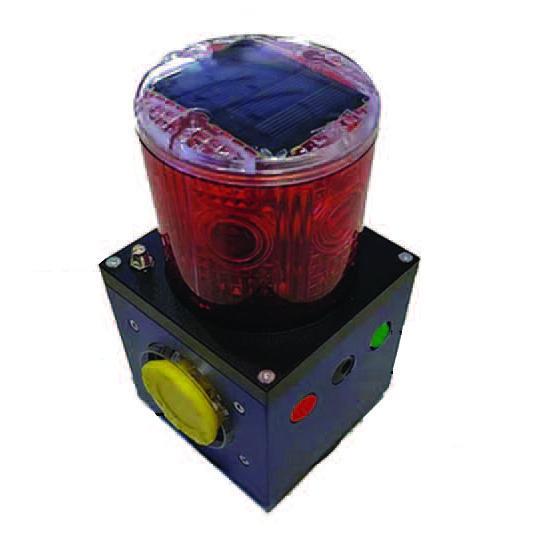

Aftershock Monitoring Instrument

Brand: Shengbo Blue

Model: BF-YZ4.0

I. Product Introduction

BF-YZ4.0 Aftershock Monitoring Instrument Monitoring Instrument A high-precision wireless digital alarm designed to protect the safety of rescue personnel during emergency rescue operations, protecting on-site rescue personnel in various emergency situations. The aftershock (displacement) monitoring instrument integrates displacement monitoring and vibration monitoring, with built-in audio-visual alarm functions, and supports wireless remote operation, suitable for monitoring inclined buildings, glass, building beams, concrete walls, metal tanks, etc.

II. Product Applications

BF-YZ4.0 Aftershock Monitoring Instrument It can be installed on any location and surface of any structure, providing early warning of movement and vibration;

III. Usage Environment

1. Collapsed structures

2. Road traffic collapses

3. Trench rescue

4. Movement of support systems

5. Inclined building beams

6. Glass doors and windows

7. Dangerous building structures, fire/flood or other unexpected events

IV. Product Features

● Portable, lightweight, and quick deployment

● User programmable, intelligent functions

● Alarm settings

● Magnetic base, quick on-site deployment

● Audio and visual alarm in any scenario

● Simple and standardized operating procedures

● Suitable for various emergency situations

● High impact resistant housing

BF-YZ4.0 Aftershock The magnetic suction cup of the aftershock monitoring instrument allows for quick and easy installation on metal surfaces. Other mounting accessories are also provided. With the aftershock displacement rescue alarm, rescue personnel have safety assurance in high-pressure environments, allowing them to focus on rescue work.

1. Technical Parameters

1. The main unit screen size is 10 inches, which can display in real time the displacement, vibration digital status, voltage, aftershock monitoring instrument number, alarm value, etc.

2. Aftershock Monitoring Instrument Screen diagonal is 6.5cm, which can display real-time values of displacement and vibration, voltage status, alarm value, and manufacturer model.

3. Measurement range: Three-dimensional stereo ( 360 degrees), which can display three-axis X, Y, and Z through three-dimensional stereo monitoring.

4. Resolution: 0.01 degrees

5. Accuracy: 0.1 degrees

6. Audio-visual alarm: 6 LED flashing lights, fire alarm 102dB, alarm sound can be turned on and off ，alarm sound is adjustable;

7. Alarm value: Fixed alarm value 0.5 degrees, 1 degree, 2.6 degrees; any alarm value can also be set via dial or button (any value between 0.1 and 10);

8. Power monitoring: Power-on self-test and low-voltage sound alarm prompt;

9. Dimensions: 100*100*102;

10. Battery: Built-in high-capacity lithium battery, working time greater than 12 hours;

2. Audio-visual alarm:

2.1 The audio-visual alarm has a reverse one-button search function, which allows all aftershock monitoring instrument alarms to automatically alarm and reverse locate the instrument position.

2.2 The audio-visual alarm can receive aftershock monitoring instrument alarms, and distinguish the source of alarm signals through voice broadcast function, and can simultaneously link 4 aftershock monitoring instruments

2.3 Battery: Built-in high-capacity lithium battery, standby time greater than 65 hours;

2.4 Aftershock monitoring instrument and audio-visual alarm wireless Transmission distance: 550 meters.

2.5 Alarm method: Audio-visual alarm, sound 122DB.
